The maximum input voltage that can be applied to the LM2594N-3.3 is 40V, but it's recommended to keep it below 37V to ensure reliable operation and to prevent damage to the internal circuitry.
While the LM2594N-3.3 can deliver up to 3A of output current, it's not recommended for high-current applications. The device has a thermal shutdown feature that will activate if the junction temperature exceeds 150°C, which can happen if the output current is too high. For high-current applications, consider using a more suitable regulator like the LM2675 or LM5175.
To ensure the output voltage is accurate and stable, make sure to use a stable input voltage, choose the correct output capacitor value (typically 10uF to 22uF), and keep the output capacitor close to the regulator. Also, ensure that the input and output capacitors are of high quality and have low ESR (Equivalent Series Resistance).
Yes, the LM2594N-3.3 is a switching regulator, and it's designed for use in switching mode power supply designs. However, you'll need to ensure that the input voltage is within the recommended range, and that the output filter components are properly selected to minimize ripple and noise.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The ripple voltage is typically around 1% of the output voltage, and the noise voltage is typically around 10mV to 20mV. You can also use simulation tools like SPICE or LTspice to model the regulator and estimate the output voltage ripple and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2594N-3.3/NOPB Overview

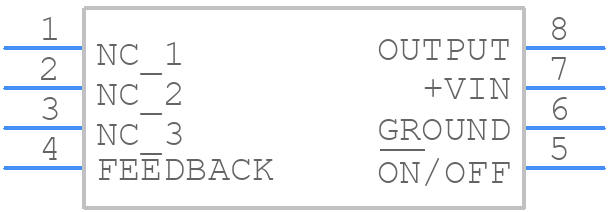

Use the download button to access the LM2594N-3.3/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM259,
or try a keyword search, such as Switching Regulator or Controllers
