The maximum input voltage that can be applied to the LM2597N-3.3/NOPB is 40V, but it's recommended to keep it below 37V to ensure reliable operation and to prevent damage to the internal components.
The LM2597N-3.3/NOPB has a maximum operating junction temperature of 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to keep the operating temperature below 85°C for optimal performance.
To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. A 10uF to 22uF ceramic or tantalum capacitor is recommended. Also, ensure that the input voltage is within the recommended range and the input capacitor is properly sized.
The LM2597N-3.3/NOPB is a switching regulator, and it may generate switching noise. To minimize switching noise, use a suitable input filter capacitor, keep the layout compact, and use a shielded inductor. Additionally, consider using a linear regulator or a low-noise switching regulator if switching noise is a major concern.
The output current capability of the LM2597N-3.3/NOPB depends on the input voltage, output voltage, and ambient temperature. A general rule of thumb is to derate the maximum output current by 10% to 20% to ensure reliable operation. Consult the datasheet for more information on output current calculation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2597N-3.3/NOPB Overview

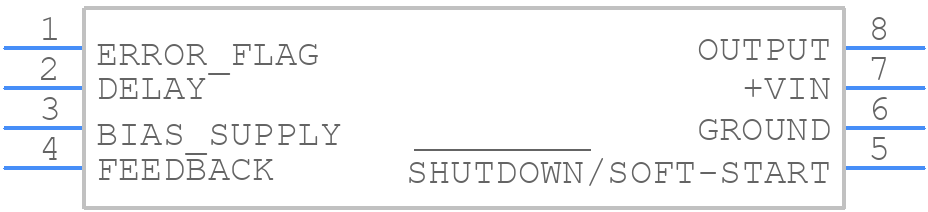

Use the download button to access the LM2597N-3.3/NOPB schematic symbol, PCB footprint, and 3D model.
