LM2599SX-ADJ/NOPB - Texas Instruments

LM2599SX-ADJ/NOPB Details

• Manufacturer Part Number:

  LM2599SX-ADJ/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

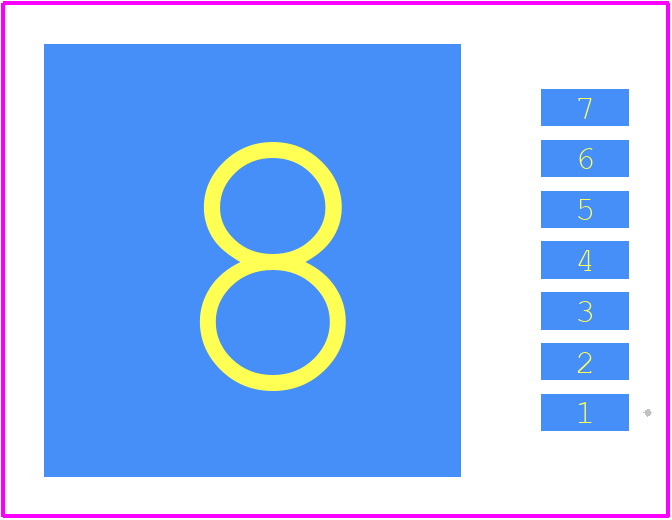

• Part Package Code:

  D2PAK

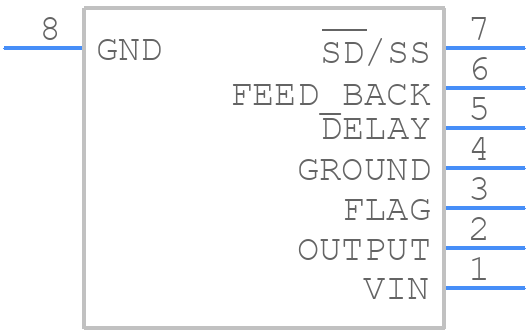

• Pin Count:

  4

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ALSO AVAILABLE IN ADJUSTABLE MODE FROM 1.2 TO 38.48 VOLT

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PSSO-G7

• JESD-609 Code:

  e3

• Length:

  10.16 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3 A

• Output Voltage-Max:

  37 V

• Output Voltage-Min:

  3.3 V

• Output Voltage-Nom:

  1.23 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-263

• Package Equivalence Code:

  SMSIP7H,.55,50TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  173 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  8.635 mm
