SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
500 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LM26001MXA/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM26001MXA/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the LM26001MXA/NOPB operates within its SOA during startup and shutdown, it's recommended to use a soft-start circuit to limit the inrush current, and to use a voltage supervisor to monitor the input voltage and prevent the device from operating outside its specified voltage range.
The recommended input capacitor type for the LM26001MXA/NOPB is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed as close to the device as possible to minimize the effects of parasitic inductance.
The output voltage ripple of the LM26001MXA/NOPB can be calculated using the following formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ΔVout is the output voltage ripple, Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
The maximum ambient temperature range for the LM26001MXA/NOPB is -40°C to 125°C. However, the device's performance and reliability may be affected at temperatures above 85°C, and it's recommended to derate the device's power dissipation accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM26001MXA/NOPB Overview

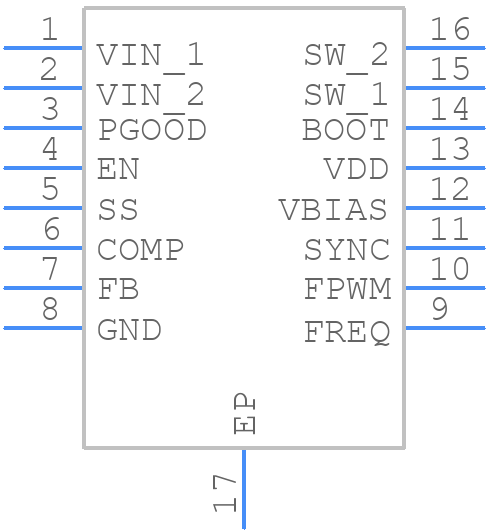

Use the download button to access the LM26001MXA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM260,
or try a keyword search, such as Switching Regulator or Controllers
