LM26003QMHX/NOPB - Texas Instruments

Description: 3A Switching Regulator with High Efficiency Sleep Mode

Download LM26003QMHX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

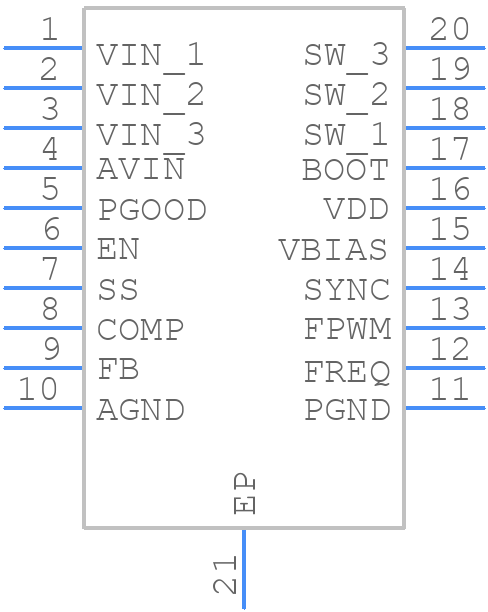

LM26003QMHX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM26003QMHX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0020A
click to zoom
3D Models
LM26003QMHX/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0020A
click to zoom

LM26003QMHX/NOPB Details

  • Manufacturer Part Number:

    LM26003QMHX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    SEATED HGT-NOM

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    35 V

  • Output Voltage-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM26003QMHX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LM26003QMHX/NOPB datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it's recommended to use a 2-layer or 4-layer PCB with a solid ground plane to reduce thermal resistance.
  • To ensure the output voltage is stable and accurate, it's recommended to use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value. Additionally, the input voltage should be well-regulated and the device should be operated within its recommended operating conditions.
  • Although the datasheet specifies a maximum input voltage of 42V, it's recommended to derate the input voltage to 40V or less to ensure reliable operation and to prevent damage to the device.
  • The LM26003QMHX/NOPB has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, it's still recommended to add external protection components such as fuses or current-limiting resistors to prevent damage to the device and the PCB.
  • The recommended input capacitor value is 10uF to 22uF, and it should be a low-ESR ceramic capacitor or a film capacitor with a voltage rating of at least 50V. The input capacitor helps to filter out noise and ripple on the input voltage.
