The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 6.3V. This capacitor helps to filter out noise and ripple on the input voltage.
To ensure the LM2621MM operates within its SOA, make sure to keep the input voltage within the recommended range (2.7V to 5.5V), and the output current below the maximum rating (500mA). Also, ensure the device is properly heat-sinked to prevent overheating.
The EN pin is used to enable or disable the regulator. When the EN pin is pulled high (above 1.4V), the regulator is enabled, and when it's pulled low (below 0.4V), the regulator is disabled. This pin can be used to implement power-saving features or to shut down the regulator during standby modes.
The LM2621MM is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to ensure proper heat-sinking and to derate the output current accordingly to prevent overheating.
To minimize noise and ensure stability, follow proper PCB layout practices, such as keeping the input and output capacitors close to the regulator, using a solid ground plane, and minimizing trace lengths and loops. Also, ensure that the input and output voltage rails are properly decoupled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2621MM Overview

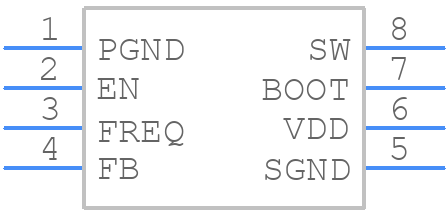

Use the download button to access the LM2621MM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM262,
or try a keyword search, such as Switching Regulator or Controllers
