The recommended input capacitor value is 10uF to 22uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
To ensure the LM2621MMX/NOPB operates within its SOA, ensure that the input voltage, output current, and ambient temperature are within the recommended operating conditions specified in the datasheet. Additionally, ensure that the device is properly heat-sinked and that the PCB layout is designed to minimize thermal resistance.
The maximum output current capability of the LM2621MMX/NOPB is 3A. However, the actual output current capability may be limited by the input voltage, output voltage, and ambient temperature. Refer to the datasheet for more information on output current capability under different operating conditions.
To optimize the PCB layout for the LM2621MMX/NOPB, follow best practices for switching regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the switching node traces. Additionally, consider using shielding and filtering components to reduce EMI.
The recommended output capacitor value is 10uF to 47uF, depending on the output voltage and output current requirements. A larger capacitor value can help to improve output voltage regulation and reduce output voltage ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2621MMX/NOPB Overview

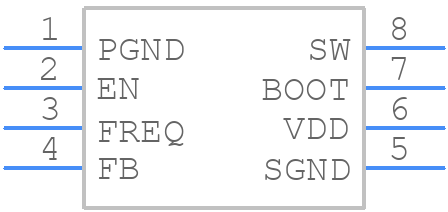

Use the download button to access the LM2621MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM262,
or try a keyword search, such as Switching Regulator or Controllers
