Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and separate, using a solid ground plane, and minimizing parasitic inductance and capacitance.
To ensure stability, follow the datasheet's guidelines for component selection, such as choosing the correct output capacitor and resistor values. Additionally, make sure to decouple the input and output pins properly, and consider adding a small capacitor (e.g., 10nF) between the VIN and GND pins to improve stability.
While the datasheet specifies a maximum input voltage of 15V, it's essential to consider the maximum voltage rating of the internal components and the device's thermal limitations. In practice, it's recommended to keep the input voltage below 12V to ensure reliable operation and prevent overheating.
The LM2623LDX/NOPB is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. It's crucial to consider the device's thermal limitations and ensure proper heat sinking and cooling in high-temperature applications.
Start by verifying the input voltage, output load, and component values match the datasheet's recommendations. Use an oscilloscope to check the output voltage waveform and look for signs of oscillation or instability. Check for proper thermal management and ensure the device is not overheating. If issues persist, consult the datasheet's troubleshooting section or contact Texas Instruments' support team.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2623LDX/NOPB Overview

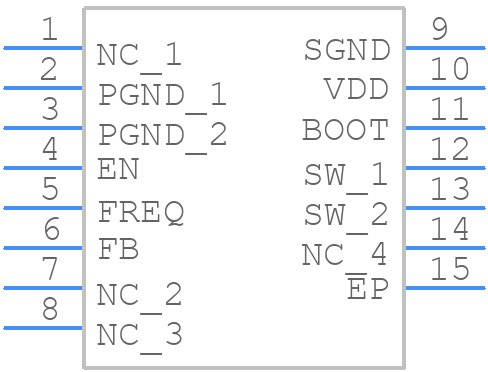

Use the download button to access the LM2623LDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM262,
or try a keyword search, such as Switching Regulator or Controllers
