Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure the LM2623MM operates within its SOA, it's essential to follow the recommended startup and shutdown sequences outlined in the datasheet. Additionally, consider using a soft-start circuit to limit the inrush current and voltage during startup, and ensure the input voltage and current are within the specified limits during shutdown.
The maximum allowed output capacitance for the LM2623MM is not explicitly stated in the datasheet, but it's generally recommended to keep the output capacitance below 10uF to ensure stability. Excessive output capacitance can cause instability and oscillations, so it's essential to carefully select the output capacitor value and type based on the specific application requirements.
To troubleshoot and debug issues with the LM2623MM, start by verifying the PCB layout and component values against the recommended design. Use an oscilloscope to monitor the input and output voltages, currents, and waveforms. Check for signs of oscillations, such as ringing or high-frequency noise, and ensure the device is operating within its SOA. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The LM2623MM is rated for operation up to 125°C, but it's essential to ensure proper thermal management to prevent overheating. Use a heat sink or thermal pad to dissipate heat, and consider using a thermistor or thermal sensor to monitor the device temperature. Follow the recommended thermal design guidelines in the datasheet and application notes to ensure reliable operation in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2623MM Overview

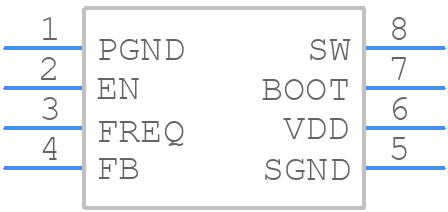

Use the download button to access the LM2623MM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM262,
or try a keyword search, such as Switching Regulator or Controllers
