A good PCB layout for the LM2623QNHLRQ1 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The LM2623QNHLRQ1 is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may vary depending on the specific application and thermal design. It's recommended to consult the datasheet and thermal design guidelines for more information.
Yes, the LM2623QNHLRQ1 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments. However, it's recommended to consult the datasheet and relevant industry standards for more information.
To troubleshoot issues with the LM2623QNHLRQ1, start by checking the input and output voltages, as well as the current consumption. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations. If the issue persists, consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2623QNHLRQ1 Overview

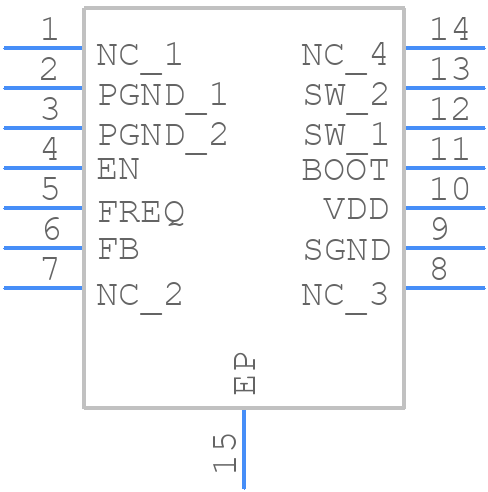

Use the download button to access the LM2623QNHLRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM262,
or try a keyword search, such as Switching Regulator or Controllers
