A good PCB layout for the LM26400YMHX/NOPB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and a high ripple current rating. Also, make sure the input capacitor is properly sized and placed close to the IC. Additionally, avoid using long input and output traces, and use a good quality inductor with a high saturation current rating.
The maximum ambient temperature range for the LM26400YMHX/NOPB is -40°C to 125°C. However, the device can operate up to 150°C with a reduced output current.
Yes, the LM26400YMHX/NOPB is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the LM26400YMHX/NOPB, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly sized and placed. Check for any signs of overheating, and ensure that the device is not operating outside its specified parameters. Use an oscilloscope to check for any oscillations or noise on the output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM26400YMHX/NOPB Overview

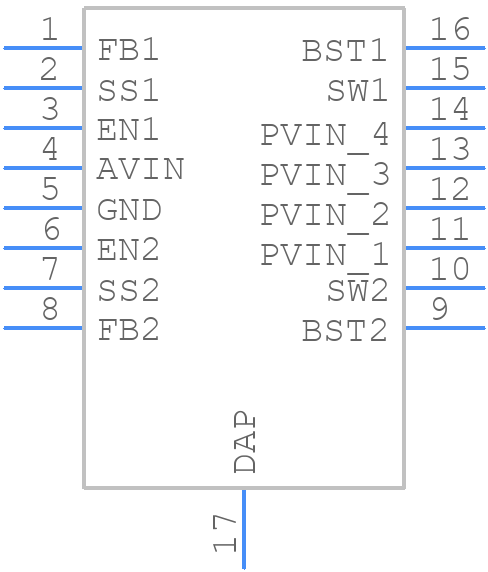

Use the download button to access the LM26400YMHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM264,
or try a keyword search, such as Switching Regulator or Controllers
