Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The LM26420Q0XMH/NOPB is rated for operation up to 125°C, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the junction temperature of the IC does not exceed 150°C.
To ensure EMC compliance, it's recommended to follow the guidelines in the datasheet and to consult the relevant EMC standards and regulations. This may include using shielding, filtering, and other techniques to minimize electromagnetic interference (EMI).
The recommended input voltage range for optimal performance is 3.5V to 5.5V, but the IC can operate with input voltages as low as 2.7V. However, the output voltage regulation and efficiency may be affected at lower input voltages.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM26420Q0XMH/NOPB Overview

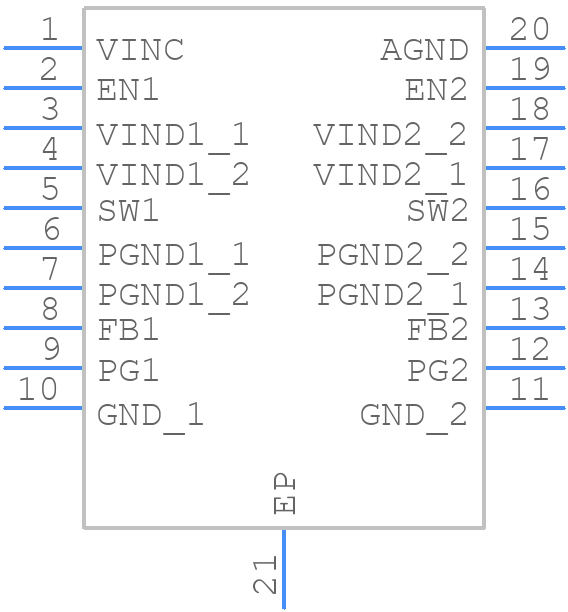

Use the download button to access the LM26420Q0XMH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM264,
or try a keyword search, such as Switching Regulator or Controllers
