A good PCB layout for the LM26420Q0XMHX/NOPB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and a high ripple current rating. Also, make sure the input capacitor is properly sized and placed close to the IC. Additionally, follow the recommended PCB layout guidelines and ensure that the input voltage is within the specified range.
The maximum ambient temperature range for the LM26420Q0XMHX/NOPB is -40°C to 125°C. However, the junction temperature should not exceed 150°C to ensure reliable operation.
Yes, the LM26420Q0XMHX/NOPB is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the reliability of the overall system.
To troubleshoot issues with the LM26420Q0XMHX/NOPB, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly sized and placed. Check for any signs of overheating, and ensure that the PCB layout follows the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM26420Q0XMHX/NOPB Overview

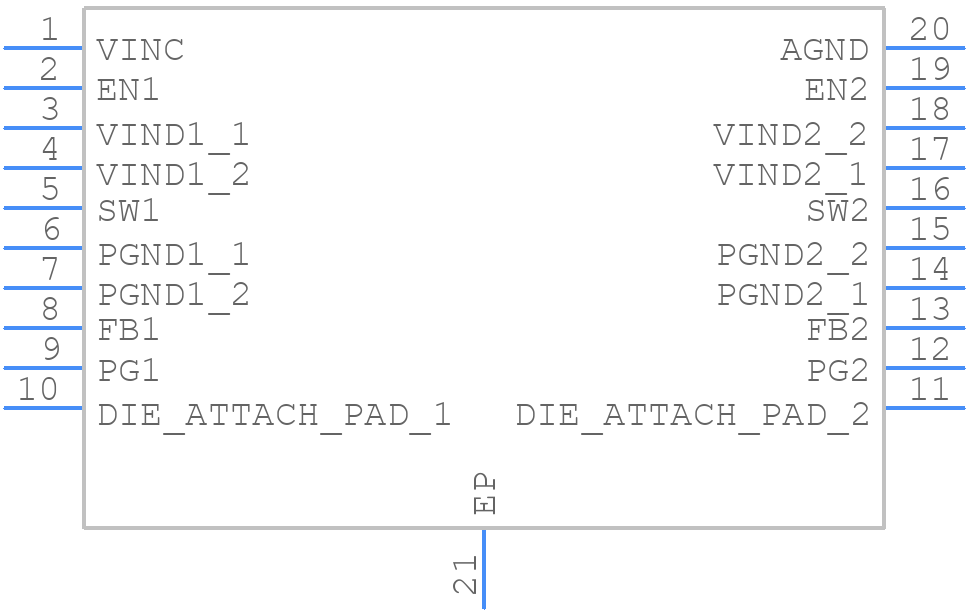

Use the download button to access the LM26420Q0XMHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM264,
or try a keyword search, such as Switching Regulator or Controllers
