A good PCB layout for the LM26420Q1XMHX/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR, the input capacitor is properly sized, and the feedback network is properly compensated. Additionally, ensure that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
The maximum ambient temperature range for the LM26420Q1XMHX/NOPB is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
Yes, the LM26420Q1XMHX/NOPB is a high-reliability device that is suitable for use in automotive and industrial applications. It is built with high-reliability materials and manufacturing processes, and it has undergone rigorous testing to ensure its reliability.
To troubleshoot issues with the LM26420Q1XMHX/NOPB, start by checking the input voltage, output voltage, and current. Verify that the device is operated within its recommended operating conditions and that the input and output capacitors are properly sized. Use an oscilloscope to check for oscillations or noise on the output, and ensure that the feedback network is properly compensated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM26420Q1XMHX/NOPB Overview

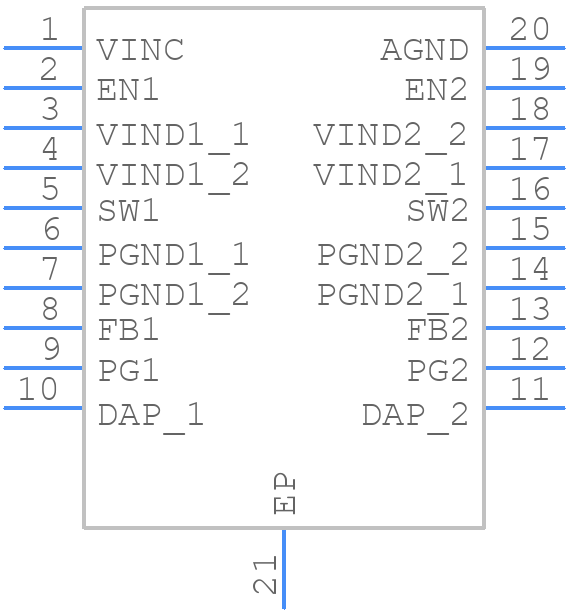

Use the download button to access the LM26420Q1XMHX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM264,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
