A good PCB layout for the LM26420Q1XSQX/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and a high ripple current rating. Also, make sure the input capacitor is properly sized and placed close to the device. Additionally, follow the recommended PCB layout guidelines and minimize the loop area of the input and output traces.
The maximum ambient temperature range for the LM26420Q1XSQX/NOPB is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
Yes, the LM26420Q1XSQX/NOPB is a high-reliability device that meets the requirements of the Automotive Electronics Council (AEC) Q100 Grade 1 standard. It's suitable for use in high-reliability applications such as automotive, industrial, and aerospace systems.
To troubleshoot issues with the LM26420Q1XSQX/NOPB, start by checking the input voltage, output voltage, and current. Verify that the device is properly powered and that the input and output capacitors are properly sized and placed. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM26420Q1XSQX/NOPB Overview

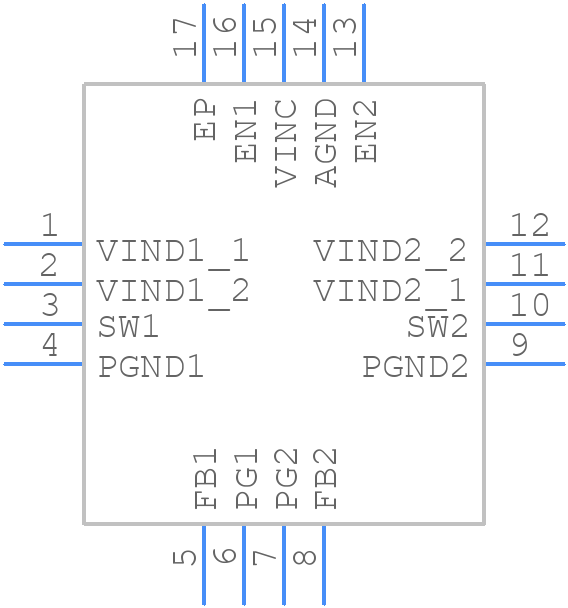

Use the download button to access the LM26420Q1XSQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM264,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
