LM2655MTCX-ADJ/NOPB - Texas Instruments

Description: 2.5A High Efficiency Synchronous Switching Regulator

Download LM2655MTCX-ADJ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

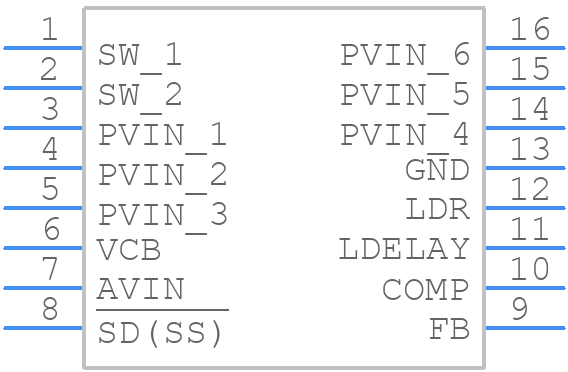

Symbol
LM2655MTCX-ADJ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2655MTCX-ADJ/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - MTC16
click to zoom
3D Models
LM2655MTCX-ADJ/NOPB - Texas Instruments - 3D model - Small Outline Packages - MTC16
click to zoom

LM2655MTCX-ADJ/NOPB Details

  • Manufacturer Part Number:

    LM2655MTCX-ADJ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    13 V

  • Output Voltage-Min:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    345 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM2655MTCX-ADJ/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2655MTCX-ADJ/NOPB is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
  • The output voltage of the LM2655MTCX-ADJ/NOPB can be adjusted by connecting a resistor divider network between the output pin and the adjust pin. The ratio of the resistors determines the output voltage, which can be calculated using the formula: Vout = 1.25V x (1 + R1/R2).
  • The minimum input capacitance required for the LM2655MTCX-ADJ/NOPB is 10uF, but it's recommended to use a higher value (e.g. 22uF) to ensure stable operation and minimize input voltage ripple.
  • The LM2655MTCX-ADJ/NOPB is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • To ensure stability, it's recommended to follow the layout guidelines in the datasheet, keep the input and output capacitors close to the device, and use a low-ESR output capacitor. Additionally, the input voltage should be well-regulated and free of noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2655MTCX-ADJ/NOPB Overview

Use the download button to access the LM2655MTCX-ADJ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM265, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
