LM2670SD-5.0/NOPB - Texas Instruments

Description: Texas Instruments LM2670SD-5.0/NOPB, 1-Channel, Step Down DC-DC Converter 14-Pin, LLP

Download LM2670SD-5.0/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

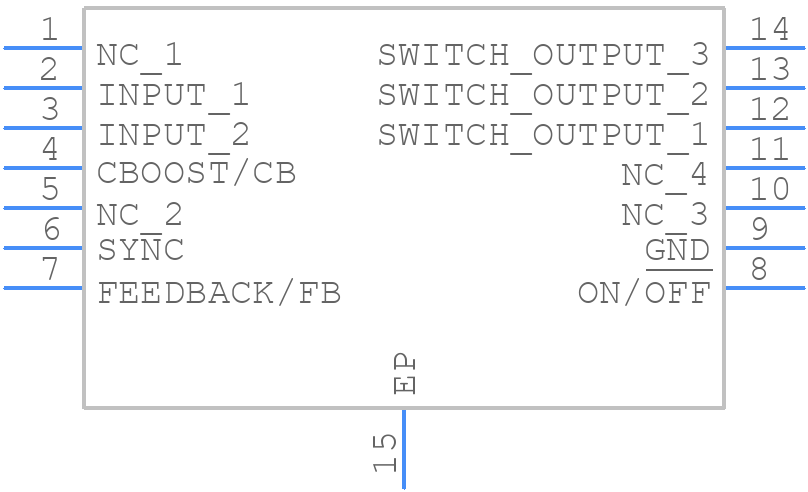

Symbol
LM2670SD-5.0/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2670SD-5.0/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHM0014A
click to zoom
3D Models
LM2670SD-5.0/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NHM0014A
click to zoom

LM2670SD-5.0/NOPB Details

  • Manufacturer Part Number:

    LM2670SD-5.0/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    HVSON, SOLCC14,.2,32

  • Pin Count:

    14

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    6.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    37 V

  • Output Voltage-Min:

    1.23 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.2,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LM2670SD-5.0/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2670SD-5.0/NOPB is 40V, but it's recommended to keep it below 30V for reliable operation.
  • The LM2670SD-5.0/NOPB has a maximum operating junction temperature of 150°C, but it's recommended to keep it below 125°C for reliable operation. You can use thermal management techniques like heat sinks or thermal interfaces to reduce the junction temperature.
  • To ensure the stability of the output voltage, make sure to follow the recommended layout and component selection guidelines in the datasheet. Use a sufficient output capacitor with low ESR, and ensure that the input capacitor is properly sized and placed close to the IC.
  • Yes, the LM2670SD-5.0/NOPB is a switching regulator, and it's designed for use in switching mode power supply designs. However, you need to ensure that the design meets the recommended operating conditions and layout guidelines to avoid issues like oscillation or instability.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESR) / (fsw * Cout), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, fsw is the switching frequency, and Cout is the output capacitance. You can use this formula to estimate the output voltage ripple and select the appropriate output capacitor.
