LM2670T-12/NOPB - Texas Instruments

Description: Conv DC-DC 8V to 40V Step Down Single-Out 12V 3A 7-Pin(7+Tab) TO-220 Tube

Download LM2670T-12/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

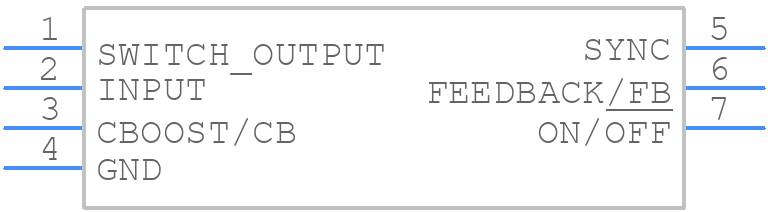

LM2670T-12/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2670T-12/NOPB - Texas Instruments PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - NDZ0007B
click to zoom
3D Models
LM2670T-12/NOPB - Texas Instruments - 3D model - Transistor Outline, Vertical - NDZ0007B
click to zoom

LM2670T-12/NOPB Details

  • Manufacturer Part Number:

    LM2670T-12/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    6.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XZFM-T7

  • JESD-609 Code:

    e3

  • Length:

    14.986 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    37 V

  • Output Voltage-Min:

    1.23 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Seated Height-Max:

    4.7 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    10.16 mm

LM2670T-12/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2670T-12/NOPB is 40V. Exceeding this voltage can cause damage to the device.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 22uF with an ESR of 0.05 ohms or less. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the Vout and GND pins.
  • The maximum output current that the LM2670T-12/NOPB can provide is 3A. Exceeding this current can cause the device to overheat and potentially fail.
  • To protect the LM2670T-12/NOPB from overheating, it is recommended to provide adequate heat sinking and to ensure good airflow around the device. The device should be mounted on a PCB with a thermal pad and connected to a heat sink or a metal core PCB.
  • The LM2670T-12/NOPB is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
