The maximum input voltage that can be applied to the LM2672N-12/NOPB is 40V, but it's recommended to keep it below 30V for reliable operation.
The LM2672N-12/NOPB has a maximum operating junction temperature of 150°C, but it's recommended to keep it below 125°C for reliable operation. You may need to derate the output current and consider thermal management for high-temperature applications.
To ensure the stability of the output voltage, make sure to follow the recommended layout and component selection guidelines in the datasheet, including the use of a suitable output capacitor and input filter components. Additionally, consider the effects of input voltage ripple, output current, and temperature on the output voltage stability.
Yes, the LM2672N-12/NOPB is a switching regulator, but it's designed for step-down (buck) conversion only. It's not suitable for other topologies like boost, flyback, or isolated converters. Make sure to follow the recommended design guidelines and component selection for a buck converter design.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet, taking into account the output capacitor value, ESR, and the switching frequency. You can also use simulation tools like SPICE or PSpice to model the regulator's behavior and estimate the output voltage ripple and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2672N-12/NOPB Overview

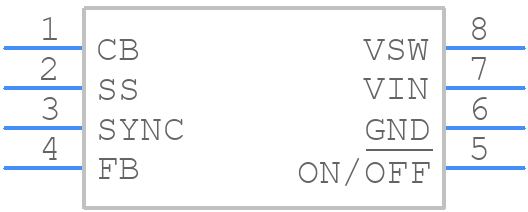

Use the download button to access the LM2672N-12/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM267,
or try a keyword search, such as Switching Regulator or Controllers
