- Part Number LM2673T-ADJ
- Manufacturer Texas Instruments
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TO127P457X1016X2052-7P
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2673T-ADJ Details
-
Manufacturer Part Number:
LM2673T-ADJ
-
Brand Name:
Texas Instruments
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SFM
-
Package Description:
TO-220, 7 PIN
-
Pin Count:
3
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
1998-05-01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
LM2673T-ADJ Frequently Asked Questions (FAQs)
-
The minimum input voltage required for the LM2673T-ADJ to operate is 3.6V, but it's recommended to use a minimum of 4.5V to ensure proper operation and to account for voltage drops in the input filter.
-
The output voltage of the LM2673T-ADJ can be calculated using the formula: Vout = 1.225V x (1 + R2/R1), where R1 and R2 are the resistors connected to the ADJ pin. The ratio of R2 to R1 determines the output voltage.
-
The maximum output current of the LM2673T-ADJ is 3A, but it's recommended to derate the output current based on the input voltage, output voltage, and ambient temperature to ensure reliable operation.
-
To ensure stability of the LM2673T-ADJ output voltage, it's recommended to use a minimum output capacitance of 22uF, and to place the output capacitor close to the output pin. Additionally, the input filter should be designed to minimize input voltage ripple.
-
The LM2673T-ADJ is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage based on the ambient temperature to ensure reliable operation. Additionally, the device should be mounted on a heat sink to dissipate heat effectively.
Trust Checks
System Verified
LM2673T-ADJ Overview

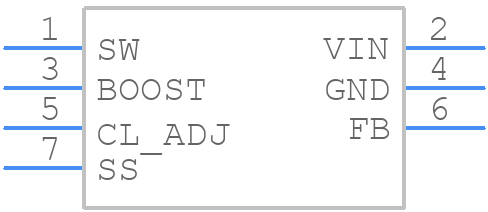

Use the download button to access the LM2673T-ADJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM267,
or try a keyword search, such as Switching Regulator or Controllers
