LM2676T-12 - Texas Instruments

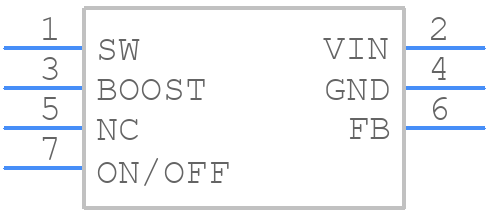

LM2676T-12 Details

• Manufacturer Part Number:

  LM2676T-12

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SFM

• Package Description:

  TO-220, 7 PIN

• Pin Count:

  3

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  15 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XZFM-T7

• JESD-609 Code:

  e0

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  5.4 A

• Output Voltage-Max:

  34 V

• Output Voltage-Min:

  1.2 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  ZIP

• Package Equivalence Code:

  ZIP7H,.16,.7TB

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Screening Level:

  TS 16949

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  280 kHz

• Technology:

  BICMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  ZIG-ZAG
