LM2676T-3.3/NOPB - Texas Instruments

Description: Texas Instruments, LM2676T-3.3/NOPB Step-Down Switching Regulator 3A, 3.3 V, 7-Pin TO-220

Download LM2676T-3.3/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

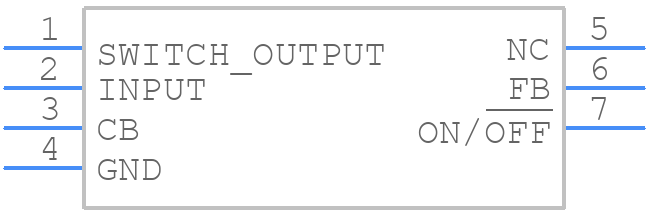

LM2676T-3.3/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2676T-3.3/NOPB - Texas Instruments PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - NDZ0007B
click to zoom
3D Models
LM2676T-3.3/NOPB - Texas Instruments - 3D model - Transistor Outline, Vertical - NDZ0007B
click to zoom

LM2676T-3.3/NOPB Details

  • Manufacturer Part Number:

    LM2676T-3.3/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SFM

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XZFM-T7

  • JESD-609 Code:

    e3

  • Length:

    14.986 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    37 V

  • Output Voltage-Min:

    1.23 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Seated Height-Max:

    4.7 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    260 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    10.16 mm

LM2676T-3.3/NOPB Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2676T-3.3/NOPB is 40V. However, it's recommended to keep the input voltage below 30V to ensure reliable operation and to prevent overheating.
  • The LM2676T-3.3/NOPB has a maximum operating junction temperature of 150°C. However, it's recommended to keep the operating temperature below 125°C to ensure reliable operation and to prevent overheating. You can use thermal management techniques such as heat sinks or thermal interfaces to reduce the operating temperature.
  • The output voltage ripple of the LM2676T-3.3/NOPB can be calculated using the formula: ΔVout = (Iout * Rl) / (f * C), where ΔVout is the output voltage ripple, Iout is the output current, Rl is the load resistance, f is the switching frequency, and C is the output capacitance. You can use the datasheet values for the switching frequency and output capacitance to calculate the output voltage ripple.
  • Yes, the LM2676T-3.3/NOPB can be used in a battery-powered device. However, you need to ensure that the input voltage is within the recommended range and that the device is designed to handle the battery voltage and current. You may also need to add additional circuitry to prevent battery drain when the device is in shutdown mode.
  • To ensure the stability of the LM2676T-3.3/NOPB output voltage, you need to follow the recommended layout and component selection guidelines in the datasheet. You should also ensure that the output capacitance is sufficient to filter out the output voltage ripple and that the input voltage is within the recommended range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2676T-3.3/NOPB Overview

Use the download button to access the LM2676T-3.3/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM267, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
