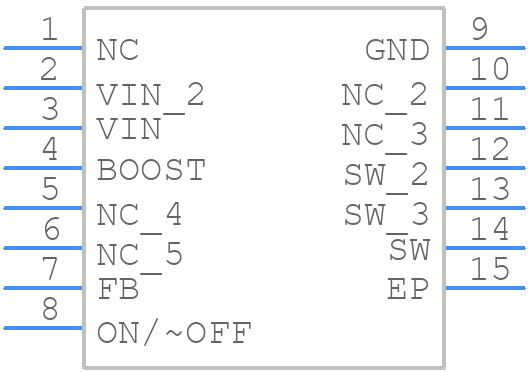

LM2678SD-5.0 - Texas Instruments

LM2678SD-5.0 Details

• Manufacturer Part Number:

  LM2678SD-5.0

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SON

• Package Description:

  LLP-14

• Pin Count:

  14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  8 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XDSO-N14

• JESD-609 Code:

  e0

• Length:

  6 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  8.75 A

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC14,.2,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  280 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Width:

  5 mm
