The maximum input voltage that can be applied to the LM2678SDX-3.3/NOPB is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
The LM2678SDX-3.3/NOPB has a maximum operating junction temperature of 150°C, but it's recommended to keep it below 125°C for optimal performance and reliability. You may need to add thermal management or derate the output current in high-temperature environments.
To ensure the stability of the output voltage, make sure to follow the recommended layout and component selection guidelines in the datasheet, including the use of a suitable output capacitor and input filter components. Additionally, ensure that the input voltage is within the recommended range and that the device is not operated in a high-temperature environment.
Yes, the LM2678SDX-3.3/NOPB is a switching regulator, but it's designed for low-power applications. If you need a high-power switching power supply, you may need to consider a different device or a more complex design. However, the LM2678SDX-3.3/NOPB can be used in low-power switching power supply designs, such as in battery-powered devices or low-power industrial control systems.
The output current capability of the LM2678SDX-3.3/NOPB depends on the input voltage, output voltage, and ambient temperature. You can use the equations and graphs provided in the datasheet to calculate the maximum output current capability for your specific design. As a general rule, the device can deliver up to 3A of output current, but this may be derated depending on the operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2678SDX-3.3/NOPB Overview

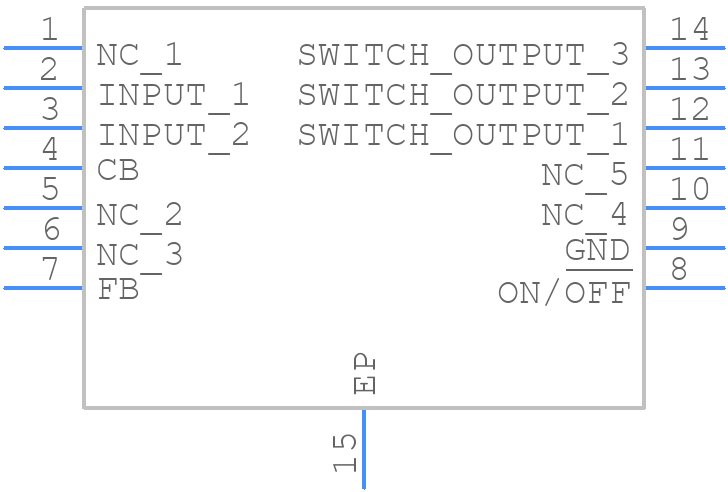

Use the download button to access the LM2678SDX-3.3/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM267,
or try a keyword search, such as Switching Regulator or Controllers
