LM26LVCISD-075/NOPB - Texas Instruments

Description: 1.6V-Capable Temperature Sensor Switch with Factory Programmed Trip Points

Download LM26LVCISD-075/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

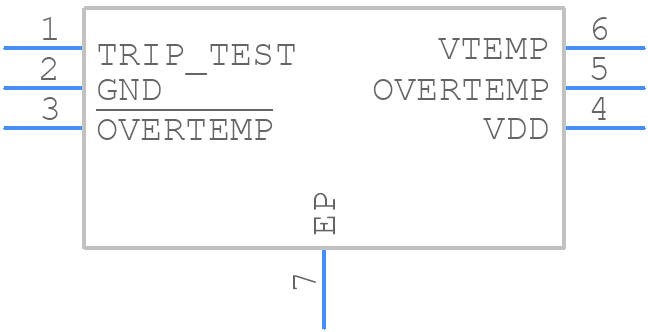

Symbol
LM26LVCISD-075/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM26LVCISD-075/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGF0006A
click to zoom
3D Models
LM26LVCISD-075/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGF0006A
click to zoom

LM26LVCISD-075/NOPB Details

  • Manufacturer Part Number:

    LM26LVCISD-075/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    2.3 Cel

  • Additional Feature:

    IT ALSO HAS ACCURACY MINUS 2.3, 2.2 AND 1.7

  • Body Breadth:

    2.2 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.016 mA

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.1,25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM26LVCISD-075/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a PCB layout with a solid ground plane and a thermal pad connected to the ground plane to improve thermal performance. A minimum of 2oz copper thickness is recommended for the thermal pad.
  • To prevent damage during soldering, Texas Instruments recommends following the recommended soldering profile, using a soldering iron with a temperature of 260°C or less, and avoiding excessive soldering time.
  • Texas Instruments recommends using a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric as the input capacitor for optimal performance.
  • Yes, the LM26LVCISD-075/NOPB is qualified for automotive and high-reliability applications, but additional testing and validation may be required to meet specific industry standards.
  • To troubleshoot issues with the device, Texas Instruments recommends checking the PCB layout, ensuring proper input and output decoupling, and verifying that the device is operated within its recommended operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM26LVCISD-075/NOPB Overview

Use the download button to access the LM26LVCISD-075/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM26L, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
