LM26LVCISD-100/NOPB - Texas Instruments

Description: 1.6V-Capable Temperature Sensor Switch with Factory Programmed Trip Points

Download LM26LVCISD-100/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

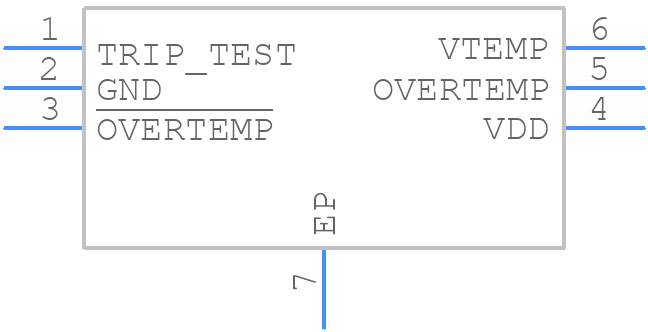

LM26LVCISD-100/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM26LVCISD-100/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGF0006A
click to zoom
3D Models
LM26LVCISD-100/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGF0006A
click to zoom

LM26LVCISD-100/NOPB Details

  • Manufacturer Part Number:

    LM26LVCISD-100/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    2.3 Cel

  • Additional Feature:

    IT ALSO HAS ACCURACY MINUS 2.3, 2.2 AND 1.7

  • Body Breadth:

    2.2 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.016 mA

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.1,25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM26LVCISD-100/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern around the device to ensure optimal thermal performance. A detailed layout guide can be found in the application note 'LM26LVCISD-100 Layout Guidelines' (SLVAE04).
  • To ensure accurate temperature measurement, it is essential to follow proper PCB layout and thermal design guidelines. Additionally, the device should be calibrated during manufacturing, and the calibration data should be stored in the device's internal EEPROM. It is also recommended to use a high-accuracy voltage reference and to minimize noise and interference in the system.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device. It is recommended to use a voltage regulator or a voltage clamp to ensure that the voltage on the VCC pin does not exceed the maximum rating.
  • The LM26LVCISD-100 is rated for operation up to 150°C. However, the device's accuracy and reliability may be affected at high temperatures. It is recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.
  • The LM26LVCISD-100 can be interfaced with a microcontroller using the I2C or SPI protocol. The device's address and data registers can be accessed using the microcontroller's I2C or SPI peripheral. It is recommended to consult the datasheet and application notes for detailed information on interfacing the device with a microcontroller.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM26LVCISD-100/NOPB Overview

Use the download button to access the LM26LVCISD-100/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM26L, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
