LM26LVCISD-150/NOPB - Texas Instruments

Description: 1.6V-Capable Temperature Sensor Switch with Factory Programmed Trip Points

Download LM26LVCISD-150/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

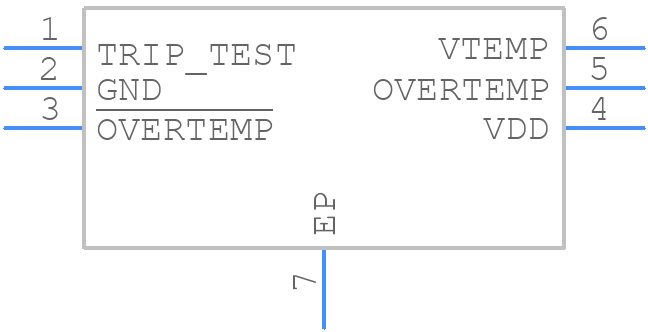

LM26LVCISD-150/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM26LVCISD-150/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGF0006A
click to zoom
3D Models
LM26LVCISD-150/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGF0006A
click to zoom

LM26LVCISD-150/NOPB Details

  • Manufacturer Part Number:

    LM26LVCISD-150/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    2.3 Cel

  • Additional Feature:

    IT ALSO HAS ACCURACY MINUS 2.3, 2.2 AND 1.7

  • Body Breadth:

    2.2 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.016 mA

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.1,25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM26LVCISD-150/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern around the device to ensure optimal thermal performance. A detailed layout guide can be found in the application note 'LM26LVCISD-150/NOPB PCB Layout Guidelines' (SLVAU06).
  • To ensure proper biasing, connect the EN pin to a logic high (VCC) to enable the device, and connect the FB pin to the output voltage through a resistive divider network to set the desired output voltage. Additionally, decouple the input and output pins with suitable capacitors to minimize noise and ensure stability.
  • The maximum input voltage that can be applied to the LM26LVCISD-150/NOPB is 15V. Exceeding this voltage may cause damage to the device or affect its performance. It is recommended to add input voltage protection, such as a voltage clamp or a transient voltage suppressor, to prevent overvoltage conditions.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily dependent on the input voltage ripple, output capacitance, and the device's internal resistance. The noise can be calculated using the device's noise spectral density and the output capacitance. A detailed calculation example can be found in the application note 'LM26LVCISD-150/NOPB Output Voltage Ripple and Noise Calculation' (SLVAU07).
  • Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF as the input capacitor. This helps to reduce input voltage ripple and noise, and ensures stable operation of the device. A detailed capacitor selection guide can be found in the application note 'LM26LVCISD-150/NOPB Input Capacitor Selection' (SLVAU08).
