LM26LVQISD-130/NOPB - Texas Instruments

Description: Temp Sensor Analog Automotive 6-Pin WSON EP T/R

Download LM26LVQISD-130/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

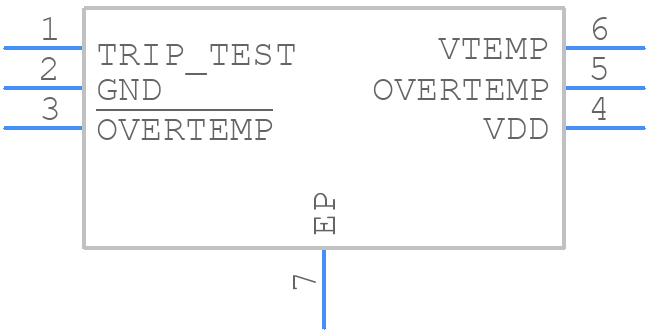

Symbol
LM26LVQISD-130/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM26LVQISD-130/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGF0006A
click to zoom
3D Models
LM26LVQISD-130/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGF0006A
click to zoom

LM26LVQISD-130/NOPB Details

  • Manufacturer Part Number:

    LM26LVQISD-130/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1.8 Cel

  • Additional Feature:

    IT ALSO HAS ACCURACY MINUS 2.3, 2.2 AND 1.7

  • Body Breadth:

    2.2 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.016 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.1,25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM26LVQISD-130/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a PCB layout with a solid ground plane and a thermal pad connected to the ground plane to improve thermal performance. A minimum of 2oz copper thickness is recommended for the thermal pad.
  • To prevent damage during soldering, Texas Instruments recommends following the recommended soldering profile, using a soldering iron with a temperature of 260°C or less, and avoiding excessive soldering time.
  • Texas Instruments recommends using a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric as the input capacitor. The capacitor should be placed as close as possible to the VIN pin.
  • The LM26LVQISD-130/NOPB is rated for operation up to 125°C, but Texas Instruments recommends derating the output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • To troubleshoot issues with the device not regulating the output voltage, check the input voltage, output load, and PCB layout for any errors or inconsistencies. Ensure that the input capacitor is properly sized and placed, and that the output voltage is within the specified range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM26LVQISD-130/NOPB Overview

Use the download button to access the LM26LVQISD-130/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM26L, or try a keyword search, such as Temperature Sensors
