Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layouts, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
To ensure accurate and stable output voltage, make sure to use a high-quality output capacitor with low ESR, and follow the recommended output capacitor selection guidelines in the datasheet. Additionally, ensure that the input voltage is within the recommended range and that the device is operated within its specified temperature range.
While the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 14V or lower to ensure reliable operation and to prevent damage to the device.
The LM2700QMTX-ADJ/NOPB has built-in overcurrent protection, but it's still recommended to add external protection components, such as a fuse or a current-limiting resistor, to prevent damage to the device and the system in case of a fault condition.
The thermal derating curve is not explicitly provided in the datasheet, but it can be obtained from Texas Instruments' application notes or by contacting their technical support. The curve provides information on how to derate the device's performance based on the operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2700QMTX-ADJ/NOPB Overview

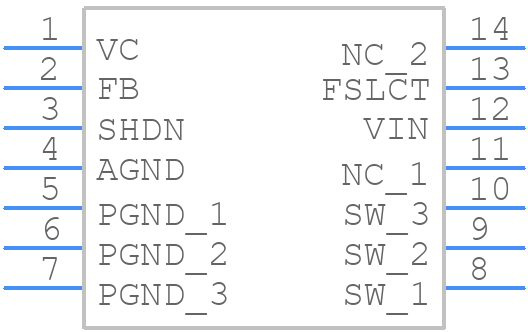

Use the download button to access the LM2700QMTX-ADJ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM270,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
