Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors meet the recommended specifications, and that the feedback network is properly compensated. You can also use simulation tools like TI's WEBENCH or SPICE to verify the design.
The LM27222SD/NOPB has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. A general rule of thumb is to derate the ambient temperature by 10-20°C to ensure reliable operation.
Yes, the LM27222SD/NOPB is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design and testing guidelines to ensure compliance with relevant standards such as AEC-Q100 or IEC 61508.
Start by verifying the input voltage, output voltage, and current levels using an oscilloscope or multimeter. Check the PCB layout and component values against the datasheet recommendations. Use thermal imaging or temperature measurement tools to identify hotspots. If issues persist, consult the TI support forums or contact a TI representative for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM27222SD/NOPB Overview

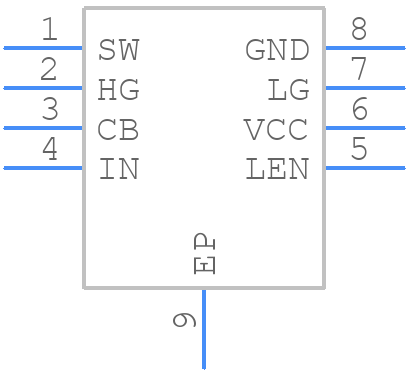

Use the download button to access the LM27222SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM272,
or try a keyword search, such as MOSFET Drivers
