SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.09 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2300 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
LM27342MY/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM27342MY/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
The LM27342MY/NOPB has a thermal shutdown feature that protects the device from overheating. However, it's still essential to ensure good thermal design practices, such as providing adequate airflow, using a heat sink if necessary, and keeping the device away from other heat sources.
Yes, the LM27342MY/NOPB is a high-reliability device that meets the requirements of various industries, including automotive, industrial, and aerospace. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the LM27342MY/NOPB, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. If the issue persists, consult the datasheet and application notes for guidance or contact Texas Instruments' support team.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM27342MY/NOPB Overview

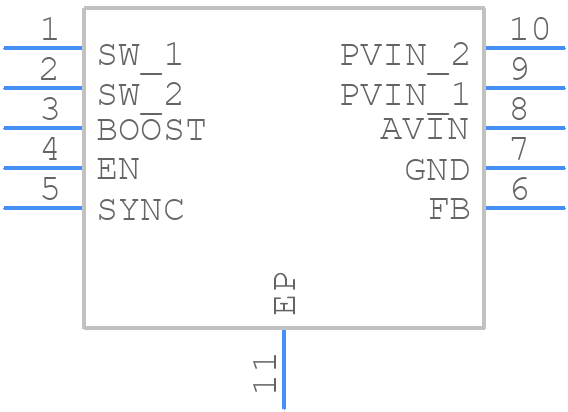

Use the download button to access the LM27342MY/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM273,
or try a keyword search, such as Switching Regulator or Controllers
