Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce EMI.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also ensure that the input and output capacitors are properly selected and placed. Additionally, the datasheet provides a stability analysis section that can help with this.
The maximum ambient temperature range for the LM27342SDX/NOPB is -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability.
Yes, the LM27342SDX/NOPB is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to consult with Texas Instruments' application engineers to ensure the device meets the specific requirements of your application.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current draw. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or noise. Consult the datasheet and application notes for troubleshooting guides and tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM27342SDX/NOPB Overview

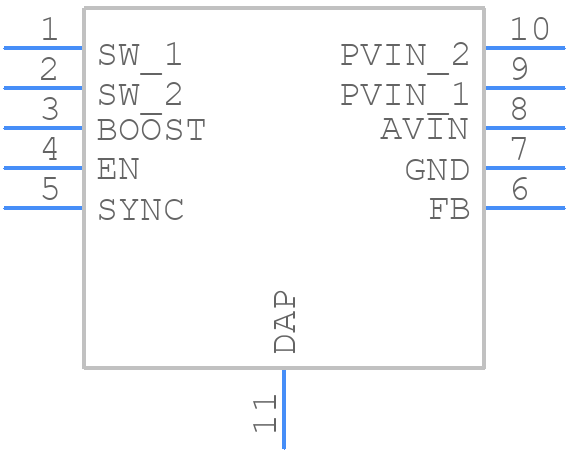

Use the download button to access the LM27342SDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM273,
or try a keyword search, such as Switching Regulator or Controllers
