The maximum input voltage that can be applied to the LM2737MTCX/NOPB is 15V, but it's recommended to operate within the specified input voltage range of 6.5V to 14V for optimal performance and reliability.
To ensure the stability of the output voltage, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and ensure that the input voltage is within the specified range. Additionally, consider adding a soft-start circuit to prevent inrush currents during startup.
The LM2737MTCX/NOPB can deliver up to 3A of output current, but it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines. The junction temperature (TJ) should be kept below 125°C to ensure reliable operation.
To minimize EMI, use a shielded inductor, keep the switching node (SW) away from sensitive analog circuits, and use a common-mode choke or ferrite bead to filter the output. Additionally, follow good PCB layout practices to minimize radiated emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2737MTCX/NOPB Overview

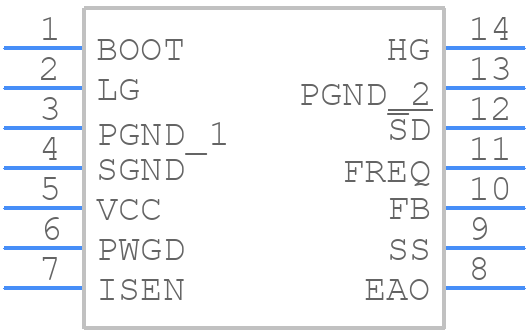

Use the download button to access the LM2737MTCX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM273,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
