Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also consider the output capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) when selecting the output capacitor. Additionally, adding a small ceramic capacitor (e.g. 10nF) between the VOUT and GND pins can help to improve stability.
The maximum input voltage rating for the LM2738XSD/NOPB is 42V, but it's recommended to operate the device within the specified input voltage range (7V to 36V) for optimal performance and reliability.
The LM2738XSD/NOPB has a maximum operating junction temperature of 150°C, but it's recommended to operate the device within the specified temperature range (-40°C to 125°C) for optimal performance and reliability. Additionally, consider the thermal derating of the device and the PCB when operating in high-temperature environments.
The output voltage of the LM2738XSD/NOPB can be calculated using the formula: VOUT = (R1 / R2) * 0.8V, where R1 and R2 are the resistors connected to the FB pin. The output voltage range is adjustable from 0.8V to 15V.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2738XSD/NOPB Overview

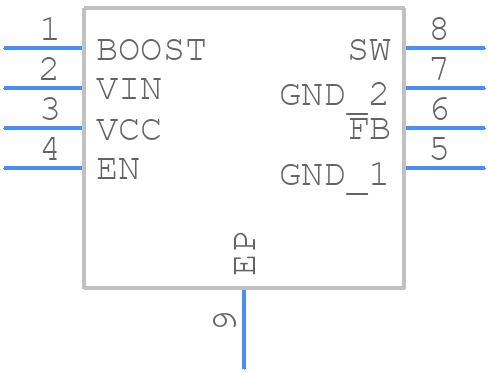

Use the download button to access the LM2738XSD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM273,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
