LM2742MTCX/NOPB - Texas Instruments

Description: 2.2-16V, Voltage Mode Synchronous Buck Controller with Adjustable Soft Start

Download LM2742MTCX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

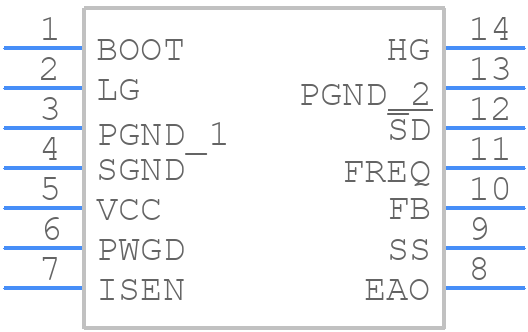

LM2742MTCX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2742MTCX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
LM2742MTCX/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

LM2742MTCX/NOPB Details

  • Manufacturer Part Number:

    LM2742MTCX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER
