LM2748MTC/NOPB - Texas Instruments

Description: 1-14V, Voltage Mode Synchronous Buck Controller with Pre-Bias Startup

Download LM2748MTC/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

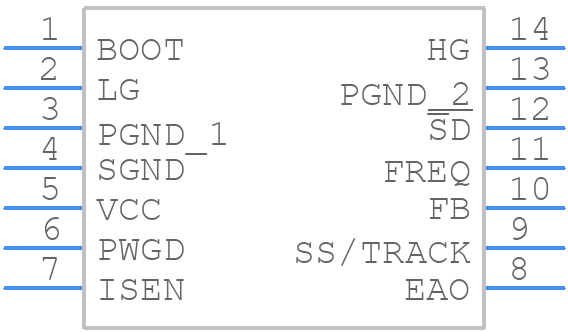

LM2748MTC/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2748MTC/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
LM2748MTC/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

LM2748MTC/NOPB Details

  • Manufacturer Part Number:

    LM2748MTC/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    1 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM2748MTC/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and also consider the output capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) values. Additionally, adding a small ceramic capacitor (e.g. 10nF) between the VOUT and GND pins can help improve stability.
  • The maximum input voltage rating for the LM2748MTC/NOPB is 42V, but it's recommended to operate the device within the specified input voltage range (7V to 36V) for optimal performance and reliability.
  • The LM2748MTC/NOPB is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Make sure to follow the recommended thermal design and layout guidelines to ensure reliable operation.
  • The output voltage of the LM2748MTC/NOPB is set by the resistor divider network (R1 and R2) connected to the FB pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R2/R1).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2748MTC/NOPB Overview

Use the download button to access the LM2748MTC/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM274, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to LM2748MTC/NOPB

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

LM2748MTC/NOPB Alternates

Showing results

Image Part Number Model
Part Image LM2748MTCX/NOPB Texas Instruments

Switching Controller, Voltage-mode, 20A, 1000kHz Switching Freq-Max, BICMOS, PDSO14
Part Image LM2748MTC Texas Instruments

Switching Controller, Voltage-mode, 1000kHz Switching Freq-Max, BICMOS, PDSO14
Part Image LM2748MTCX Texas Instruments

Switching Controller, Voltage-mode, 1000kHz Switching Freq-Max, BICMOS, PDSO14
