Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and separate, using a solid ground plane, and minimizing parasitic inductance and capacitance.
To ensure stability, follow the datasheet's guidelines for component selection, such as choosing the correct output capacitor and resistor values. Additionally, make sure to decouple the input and output pins properly, and consider adding a small capacitor (e.g., 10nF) between the VIN and GND pins to improve stability.
The LM2751SD-A/NOPB has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
Yes, the LM2751SD-A/NOPB is qualified for automotive and high-reliability applications, but it's essential to follow Texas Instruments' guidelines for qualification and testing, and to ensure that the device is used within its specified operating conditions.
To troubleshoot issues, start by verifying the input voltage, output load, and component values. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and input current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2751SD-A/NOPB Overview

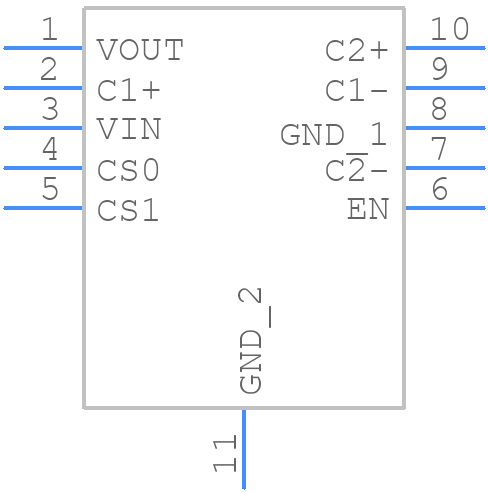

Use the download button to access the LM2751SD-A/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM275,
or try a keyword search, such as Display Drivers
