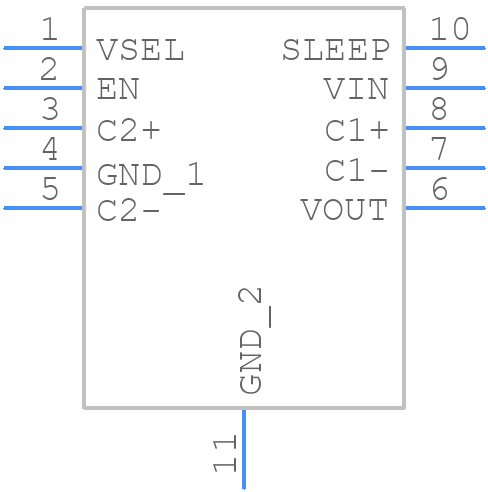

LM2770SD-1215 - Texas Instruments

LM2770SD-1215 Details

• Manufacturer Part Number:

  LM2770SD-1215

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SON

• Package Description:

  3 X 3 MM, 0.80 MM HEIGHT, PLL-10

• Pin Count:

  10

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHED CAPACITOR REGULATOR

• Control Technique:

  PULSE FREQUENCY MODULATION

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.7 V

• Input Voltage-Nom:

  3.6 V

• JESD-30 Code:

  S-XDSO-N10

• JESD-609 Code:

  e0

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Output Current-Max:

  0.25 A

• Output Voltage-Nom:

  1.5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Screening Level:

  TS 16949

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  925 kHz

• Technology:

  BICMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
