Part Image

LM2775DSGR - Texas Instruments

Description: Voltage Regulators - Switching Regulators Switched Capacitor 5V Boost Converter 8-WSON -40 to 85

Download LM2775DSGR Model

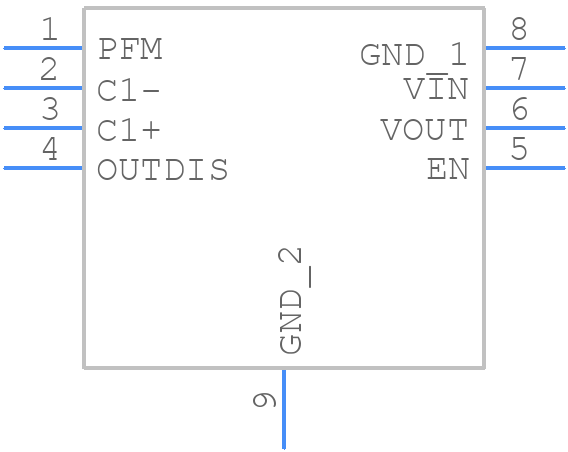

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM2775DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG
click to zoom
3D Models
LM2775DSGR - Texas Instruments  - 3D model - Small Outline No-lead - DSG
click to zoom

LM2775DSGR Details

  • Manufacturer Part Number:

    LM2775DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    WSON-8

  • Pin Count:

    8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM2775DSGR Overview

Use the download button to access the LM2775DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM277, or try a keyword search, such as Switching Regulator or Controllers

Parts related to LM2775DSGR

Showing 0 results

LM2775DSGR Alternates

Showing results

Image Part Number Model
Part Image LM2775QDSGTQ1 Texas Instruments

Automotive, 2.7-V to 5.5-VIN, 200-mA output current, 5-V fixed output voltage doubler 8-WSON -40 to 125

Part Image PLM2775QDSGRQ1 Texas Instruments

Switched Capacitor 5V Boost Converter 8-WSON -40 to 125
