A good PCB layout for the LM27951SD/NOPB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
The choice of input and output capacitors for the LM27951SD/NOPB depends on the specific application and the desired performance. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be chosen based on the desired ripple voltage and the output current requirement.
The LM27951SD/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a higher temperature range with derating. It's recommended to consult the datasheet for more information on temperature derating.
Yes, the LM27951SD/NOPB is suitable for high-reliability applications. It's manufactured using a high-reliability process and has undergone rigorous testing to ensure its performance and reliability. However, it's recommended to consult the datasheet and the manufacturer's reliability report for more information.
To troubleshoot issues with the LM27951SD/NOPB, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Check for any signs of overheating, and verify that the device is operated within its recommended operating conditions. If the issue persists, consult the datasheet and the manufacturer's application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM27951SD/NOPB Overview

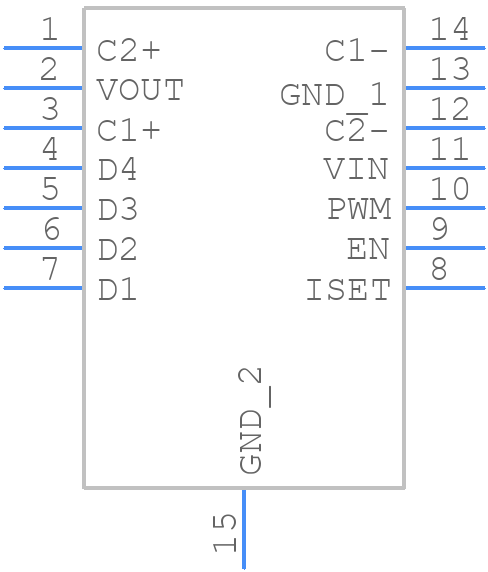

Use the download button to access the LM27951SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM279,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
