A good PCB layout for the LM27952SD/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
The LM27952SD/NOPB can handle input voltages up to 42V, but it's recommended to operate the device within its recommended operating conditions to ensure reliable operation and to prevent damage to the device.
The LM27952SD/NOPB is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics and to ensure that the device is properly heat-sinked to prevent overheating.
To troubleshoot issues with the LM27952SD/NOPB, start by verifying that the device is properly powered and that the input and output capacitors are correctly connected. Check the device's operating conditions, such as input voltage and temperature, and ensure that the device is not overheating. Use an oscilloscope to verify the output voltage and to check for any signs of oscillation or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM27952SD/NOPB Overview

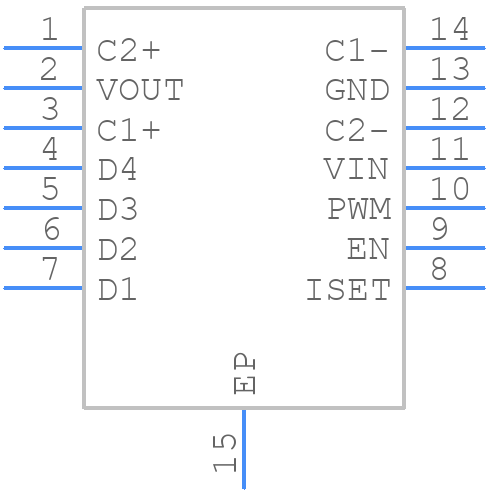

Use the download button to access the LM27952SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM279,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
