LM2798MM-1.5 - Texas Instruments

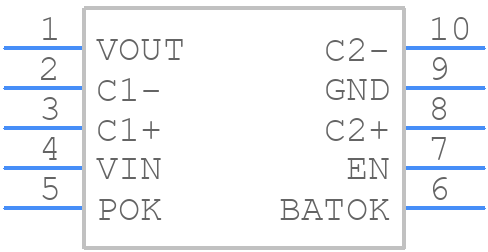

LM2798MM-1.5 Details

• Manufacturer Part Number:

  LM2798MM-1.5

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  MSOP

• Package Description:

  MSOP-10

• Pin Count:

  10

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHED CAPACITOR REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE FREQUENCY MODULATION

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.6 V

• Input Voltage-Nom:

  3 V

• JESD-30 Code:

  S-PDSO-G10

• Length:

  3 mm

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.12 A

• Output Voltage-Max:

  1.59 V

• Output Voltage-Min:

  1.41 V

• Output Voltage-Nom:

  1.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP10,.19,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Seated Height-Max:

  1.09 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  500 kHz

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
