- Part Number LM2832XMY
- Manufacturer Texas Instruments
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DGN0008A HEIGHT=1.1
- Released Date Jan 11, 2017
- Last Modified Date May 12, 2025 5:17 AM UTC
- Pinout / Pin List Click Here (Member Only)
LM2832XMY Details
-
Manufacturer Part Number:
LM2832XMY
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
MSOP
-
Package Description:
EMSOP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
LM2832XMY Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LM2832XMY is 30V, but it's recommended to operate within the specified input voltage range of 7V to 28V for optimal performance.
-
To ensure the stability of the output voltage, it's essential to use the recommended output capacitor value and type, and to follow the layout guidelines provided in the datasheet. Additionally, the input capacitor should be placed close to the input pin to minimize noise and ensure stability.
-
The maximum output current that the LM2832XMY can provide is 3A, but it's recommended to operate within the specified output current range of 0.5A to 2A for optimal performance and to prevent overheating.
-
To protect the LM2832XMY from overheating, it's essential to provide adequate heat sinking, ensure good airflow, and operate within the specified temperature range of -40°C to 125°C. Additionally, the device should be mounted on a PCB with a sufficient thermal conductivity to dissipate heat efficiently.
-
The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
Trust Checks
System Verified
LM2832XMY Overview

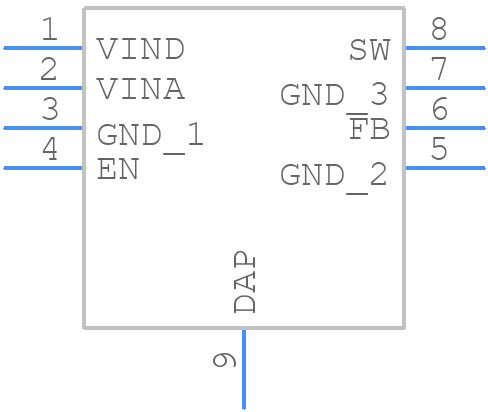

Use the download button to access the LM2832XMY schematic symbol, PCB footprint, and 3D model.
