SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.09 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
3000 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
LM2832YMY/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM2832YMY/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the input voltage is within the recommended range. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
The LM2832YMY/NOPB is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
Yes, the LM2832YMY/NOPB is suitable for high-reliability and automotive applications. It's built with high-quality materials and manufacturing processes to ensure reliability and robustness. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the LM2832YMY/NOPB, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to measure the output voltage and current waveforms. If issues persist, consult the datasheet and application notes or contact Texas Instruments' support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2832YMY/NOPB Overview

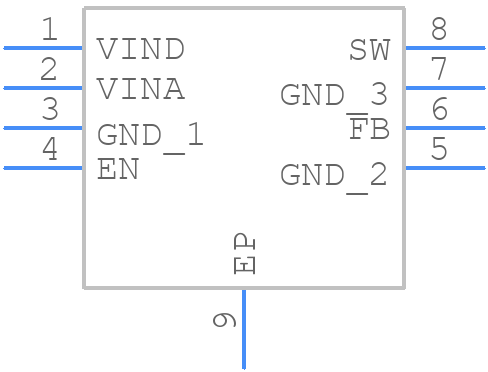

Use the download button to access the LM2832YMY/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM283,
or try a keyword search, such as Switching Regulator or Controllers
