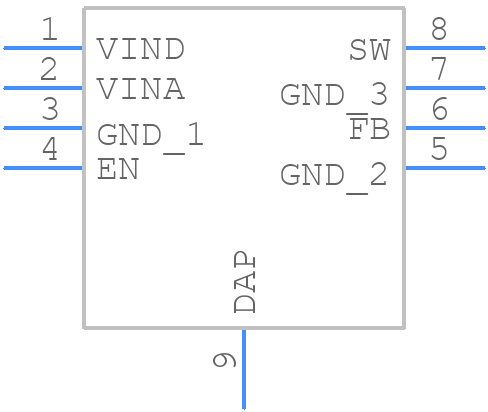

LM2832ZMY - Texas Instruments

LM2832ZMY Details

• Manufacturer Part Number:

  LM2832ZMY

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  MSOP

• Package Description:

  EMSOP-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  3 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3.25 A

• Output Voltage-Max:

  4.5 V

• Output Voltage-Min:

  0.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP8,.19

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.09 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  3750 kHz

• Technology:

  BICMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
