SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.09 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
3000 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
LM2833XMY/NOPB Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the LM2833XMY/NOPB is 15V, but it's recommended to operate within the specified input voltage range of 4.5V to 12V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a minimum capacitance of 10uF and an ESR (Equivalent Series Resistance) of less than 1 ohm. Additionally, the output capacitor should be placed as close to the output pin as possible.
The maximum output current that the LM2833XMY/NOPB can deliver is 500mA. However, the output current should be derated based on the input voltage, ambient temperature, and other operating conditions to ensure reliable operation.
To protect the LM2833XMY/NOPB from overheating, ensure that the device is operated within the specified temperature range of -40°C to 125°C. Also, provide adequate heat sinking, and ensure good airflow around the device. Additionally, monitor the device's junction temperature and reduce the output current or input voltage if the temperature exceeds 125°C.
Yes, the LM2833XMY/NOPB is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2833XMY/NOPB Overview

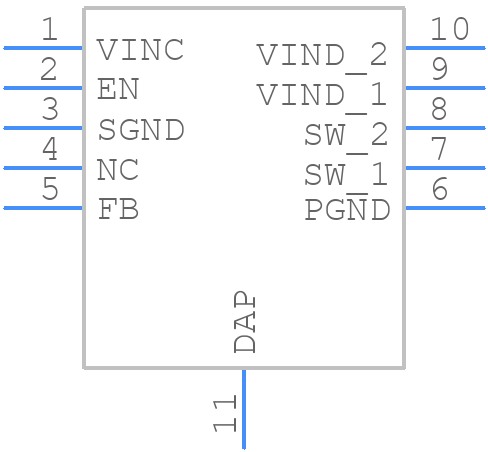

Use the download button to access the LM2833XMY/NOPB schematic symbol, PCB footprint, and 3D model.
