LM2852XMXA-2.5/NOPB - Texas Instruments

Description: Texas Instruments LM2852XMXA-2.5/NOPB, Step Down DC-DC Converter, 2A, 14-Pin TSSOP

Download LM2852XMXA-2.5/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

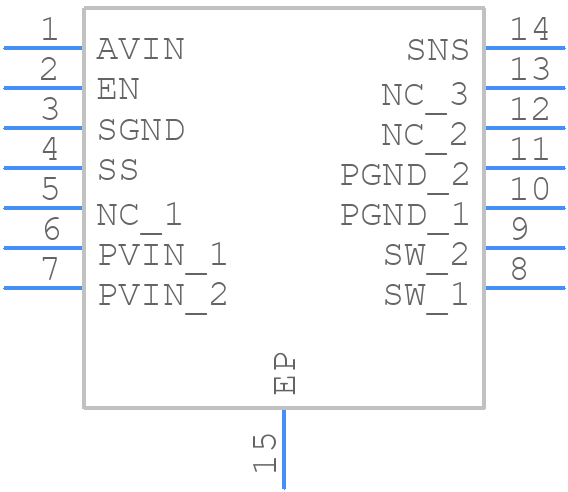

LM2852XMXA-2.5/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2852XMXA-2.5/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP
click to zoom
3D Models
LM2852XMXA-2.5/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP
click to zoom

LM2852XMXA-2.5/NOPB Details

  • Manufacturer Part Number:

    LM2852XMXA-2.5/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE RANGE FROM 2.4437V TO 2.5563V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.85 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM2852XMXA-2.5/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. If oscillations occur, try adding a small ceramic capacitor (e.g. 10nF) in parallel with the output capacitor to improve stability.
  • The maximum input voltage rating for the LM2852XMXA-2.5/NOPB is 15V, but it's recommended to operate within the specified input voltage range (7V to 12V) for optimal performance and reliability.
  • The LM2852XMXA-2.5/NOPB has a maximum operating junction temperature of 125°C. While it can operate in high-temperature environments, it's essential to ensure proper thermal management and heat sinking to prevent overheating and reduce reliability concerns.
