- Part Number LM2852YMXA-1.2
- Manufacturer Texas Instruments
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PWP0014A
- Released Date Apr 16, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2852YMXA-1.2 Details
-
Manufacturer Part Number:
LM2852YMXA-1.2
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TSSOP
-
Package Description:
TSSOP-14
-
Pin Count:
14
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Additional Feature:
SEATED HGT-NOM
LM2852YMXA-1.2 Frequently Asked Questions (FAQs)
-
The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor can help reduce input voltage ripple and improve output stability.
-
The LM2852YMXA-1.2 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage to ensure reliable operation. Consult the datasheet for thermal derating curves and guidelines.
-
To ensure stability, follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 1uF), and avoid long input and output traces. Additionally, ensure the input voltage is within the recommended range and the output current is within the specified limits.
-
Yes, the LM2852YMXA-1.2 can be used as a voltage regulator for a microcontroller, but ensure the output voltage is within the microcontroller's recommended operating range. Also, consider the microcontroller's power consumption and ensure the LM2852YMXA-1.2 can supply the required current.
-
The typical dropout voltage of the LM2852YMXA-1.2 is around 1.5V to 2V, depending on the output current and input voltage. This means the input voltage should be at least 1.5V to 2V higher than the output voltage to ensure proper regulation.
Trust Checks
Community Provided
System Verified
Community Approved
LM2852YMXA-1.2 Overview

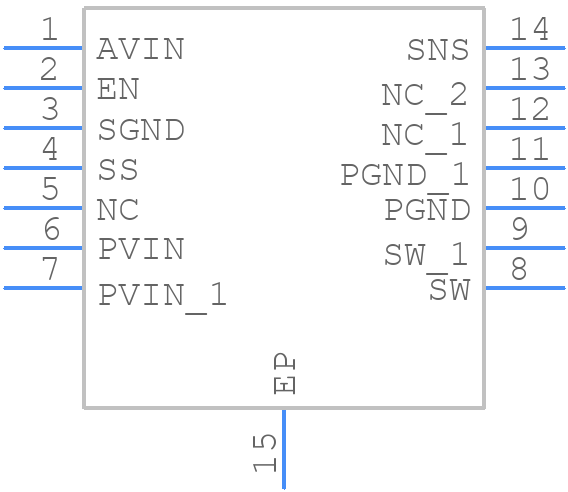

Use the download button to access the LM2852YMXA-1.2 schematic symbol, PCB footprint, and 3D model.
