Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the input voltage. You can also add a small ceramic capacitor (e.g. 10nF) between the Vout pin and GND to improve stability.
The maximum input voltage rating for the LM2852YMXA-1.5/NOPB is 15V, but it's recommended to operate within the recommended input voltage range of 7V to 12V for optimal performance and reliability.
The LM2852YMXA-1.5/NOPB has a maximum operating junction temperature of 125°C. While it can operate in high-temperature environments, it's recommended to derate the output current and ensure proper thermal management to prevent overheating and reduce reliability.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * Rds(on) * fsw) / (Cout * Vout), where Iout is the output current, Rds(on) is the on-resistance of the internal switch, fsw is the switching frequency, Cout is the output capacitor value, and Vout is the output voltage. You can also use simulation tools or consult the datasheet for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM2852YMXA-1.5/NOPB Overview

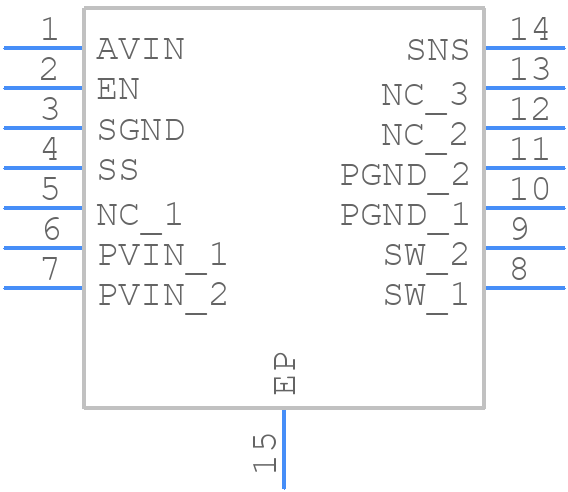

Use the download button to access the LM2852YMXA-1.5/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM285,
or try a keyword search, such as Switching Regulator or Controllers
