LM2852YMXA-2.5/NOPB - Texas Instruments

Description: 2A 500/1500kHz Synchronous SIMPLE SWITCHER® Buck Regulator

Download LM2852YMXA-2.5/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

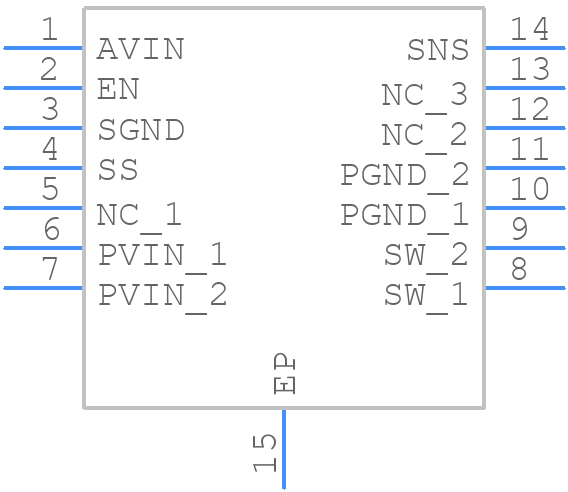

Symbol
LM2852YMXA-2.5/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM2852YMXA-2.5/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0014A
click to zoom
3D Models
LM2852YMXA-2.5/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0014A
click to zoom

LM2852YMXA-2.5/NOPB Details

  • Manufacturer Part Number:

    LM2852YMXA-2.5/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.85 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM2852YMXA-2.5/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output pins as close as possible to minimize noise and ensure accurate voltage reference. Additionally, it is recommended to use a solid ground plane and to keep the device away from high-current carrying traces.
  • To ensure stability, it is recommended to use a minimum of 10nF capacitor between the output and ground pins, and to keep the output capacitor value below 100nF. Additionally, the device should be operated within the recommended operating conditions and the input voltage should be well-regulated.
  • The maximum allowed input voltage for the LM2852YMXA-2.5/NOPB is 12V. Exceeding this voltage may damage the device.
  • The LM2852YMXA-2.5/NOPB is rated for operation up to 125°C. However, the device's accuracy and stability may be affected at high temperatures. It is recommended to derate the device's performance at high temperatures and to ensure proper thermal management.
  • The output voltage tolerance of the LM2852YMXA-2.5/NOPB is typically ±0.5% at 25°C. To calculate the output voltage tolerance, multiply the nominal output voltage (2.5V) by the tolerance percentage (0.5%). This gives a tolerance range of ±12.5mV.
